Happy Days Lunch Wagon

The Diner you take with you!

EQUIPMENT SPECIFICATIONS - (Scroll down for floorplans)

• TRAILER 20' SERIES VI
  Mounted on 14.400# tamdem Torflex axle assembly with 235/85R16-G114RST radial tires. Permanent hitch. 2 5/16" coupler and ball. Hitch jack. Safety chain. All ICC road lights. 12V connector complet for trailer and for towing vehicle. Break-a-way kit complete and installed. four wheel electric brakes with electronic brake control. roof sealed and insulated. basic 100 amp 220 v electrical wiring package. overhead storage shelves on two sides and one end of trailer. outside fold down stainless steel serving counters. undercoated with rust prohibitive black primer and painted all white inside and out using DuPont Centari paint.
• CORNER JACKS 7000# : Set of four
• FLOOR, VINYL - SQ. FT
• QUILTED STAINLESS BACKWALL
• ELECTRICAL UPGRADE 110 AMP 220V Wiring, 24 Circuit box with six extra circuits
• AIR CONDITIONER 3.5 TON UNIT
• HOOD AND EXHAUST FAN 80" X 32"
  Stainless Steel Hood with Filters and Upblast Fan
• REFRIGERATOR TRUE 23 CU FT
• PLUMBING PACKAGE
  173-4 Single Sink, Triple Sink with 14" x 9" x 10" Bowl, 6 Gallon Electric Water Heater, 36 Gallon Stainless Steel Waste Water Tank, Two Stage Water Filter, All Faucets, Fittings and Strainers
• RACK FOR BAG-IN-BOX Containers
• COUNTER FORMED STAINLESS STEEL
• POST MIX DRINK SYSTEM SITCO #1522
  Drop in Post Mix - Bag in Box - 5 Flavor
• FLAVOR RAIL NELSO BDF-4 All Stainless with Pump Ladle and Jar Kit
• ICE MAKER HOSHIZAKI KM-500 Ice Maker with B-300 SF Ice Bin
• PREP TOP REFRIGERATOR
• HOT DOG STEAMER STAR 70SSA
• CONVEYER TOASTER QCS1-350 018 GRILL STAR 836TS LP Gas
• HOTPLATE STAR 602HD- LP Gas
• STAINLESS STEEL FRAME For Grill and Hotplate
• FRYER PITCO SG14 LP Gas - Stainless
• FREEZER Silver King 6 cu. Ft. Freezer
• GAS BOTTLES/RACK/REGO/40# With Gas Line to Equipment With Shut Off Valve
• AWNING FOLD OVER TYPE
• AWNING BASKET STYLE CANVAS A&A
• GLASS PER OPENING FIXED OR SLIDING
• TOPSIGN Aluminum Topsign with Arched Center Station
• ARTWORK Fort Topsign as shown on rendering
• CANVAS AROUND BOTTOM
• MIRRORED STAINLESS Trim around lower body
• SEAL AND INSULATE All Walls
• AUTOMATIC FIRE EXTINGUISHER SYSTEM

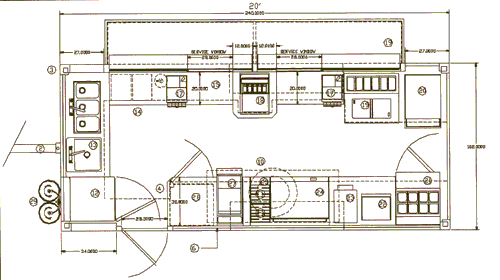

Floor Plan

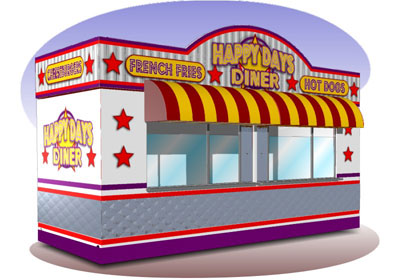

Elevation Plan

*Pricing and Specifications are subject to change without notice.
